Inconel 718 Stud Bolts to DIN 940 Studs, With Engagement Length 2,5 x D

DIN 940 Studs, With Engagement Length 2,5 x D

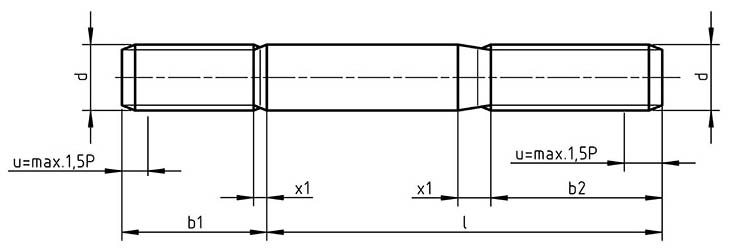

DIN 940 Studs, with engagement length 2,5 x d Dimenions

Thread d p ds b1 b2 x
max min l<125 125<l<200 l>200
M4 0.7 - 4 3.82 10 14 20 - 1.75
M5 0.8 - 5 4.82 12 16 22 - 2
M6 1 - 6 5.82 15 18 24 - 2.5
M7 1 - 7 6.78 18 20 26 - 2.5
M8 1.25 1 8 7.78 20 22 28 - 3.2
M10 1.5 1.25 10 9.78 25 26 32 45 3.8
M12 1.75 1.5/1.25 12 11.73 30 30 36 49 4.3
M14 2 1.5 14 13.73 35 34 40 53 5
M16 2 1.5 16 15.73 40 38 44 57 5
M18 2.5 1.5 18 17.73 45 42 48 61 6.3
M20 2.5 1.5 20 19.67 50 46 52 65 6.3
M22 2.5 1.5 22 21.67 55 50 56 69 6.3
M24 3 2 24 23.67 60 54 60 73 7.5
